Our proprietary continuous, small scale rotary filtration and washing system purifies diluted to concentrated suspensions containing active pharmaceutical ingredients (APIs) or API intermediates.

Our filtration solution

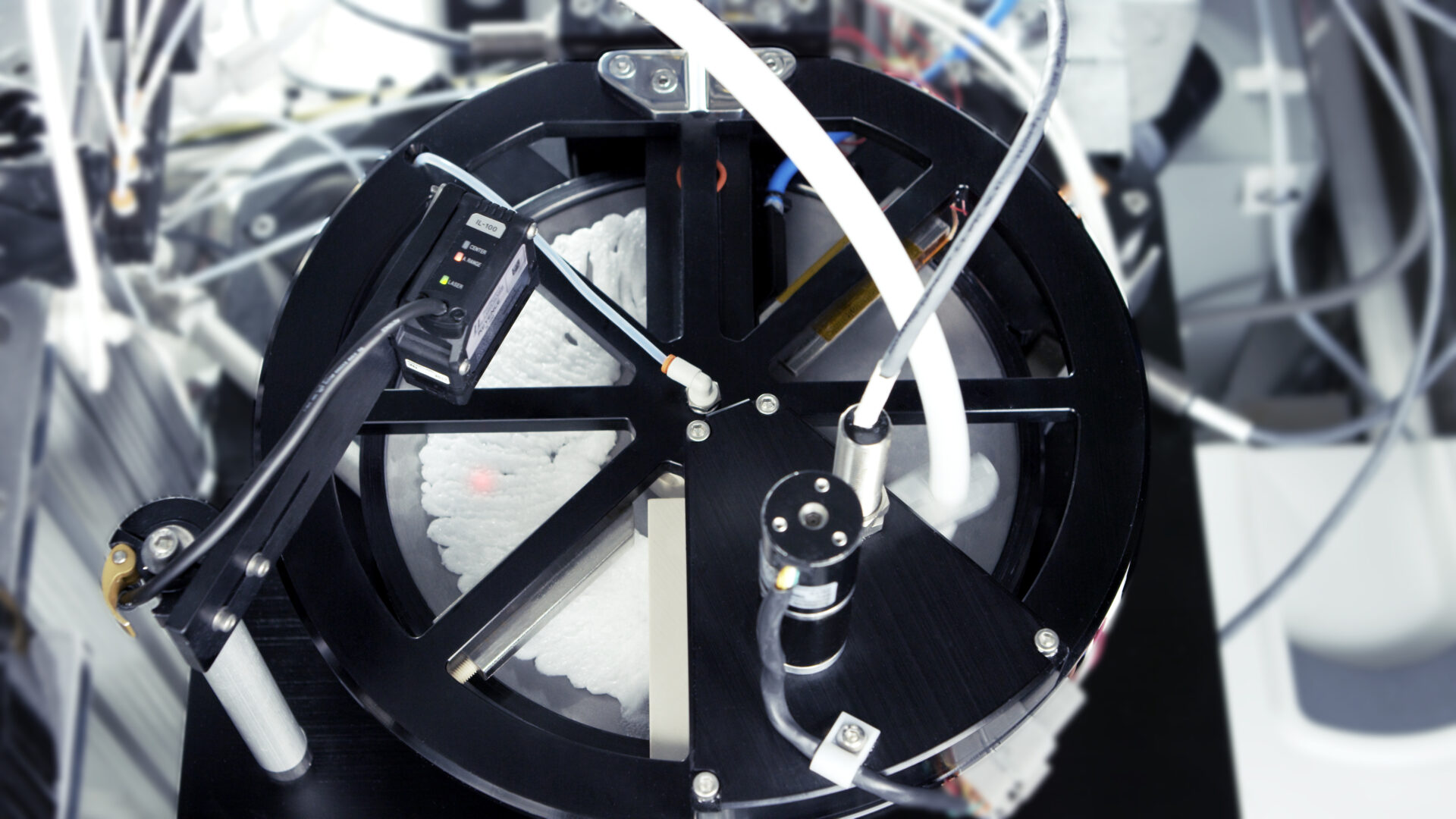

Continuous Rotary Filter: Our novel proprietary continuous filter purifies the crystallization slurry, removing unwanted impurities from the Active Pharmaceutical Ingredient (API) or intermediate product. This process can take less than a minute. The slurry is deposited on a rotating porous plate, where the mother liquor is filtered out through a vacuum system. The thin (1 to 6 mm) wet-cake is effectively and efficiently purged of impurities through the application of multiple wash stations, after which it is transported to the next unit. An in-line cleaning mechanism restores the filter plate, while the purified wet-cake is analyzed with in-line PATs for real-time purity and concentration. The system has the ability to segregate filtrate streams, enhancing solvent recovery.

Related Paper

All published articles that relate to this specific technology and solution.

A Continuous Rotary Filtration for the Separation and Purification of an API
A Continuous Rotary Filtration for the Separation and Purification of an API
Design and Commercialization of an End-to-End Continuous Pharmaceutical Production Process: A Pilot Plant Case Study
Design and Commercialization of an End-to-End Continuous Pharmaceutical Production Process: A Pilot Plant Case Study
E-factor analysis of a pilot plant for end-to-end integrated continuous manufacturing (ICM) of pharmaceuticals
E-factor analysis of a pilot plant for end-to-end integrated continuous manufacturing (ICM) of pharmaceuticals
Design of a Continuous Solvent Recovery System for End-to-End Integrated Continuous Manufacturing (ICM) of Pharmaceuticals
Design of a Continuous Solvent Recovery System for End-to-End Integrated Continuous Manufacturing (ICM) of Pharmaceuticals
An automated modular assembly line for drugs in a miniaturized plant
An automated modular assembly line for drugs in a miniaturized plant
